When I first heard about UV light air purifiers, I was skeptical. The idea of using ultraviolet light to kill airborne germs, mold spores, and allergens sounded like something out of a sci-fi movie. But after dealing with seasonal allergies, recurring dust buildup, and the occasional musty smell in my home, I decided to give it a try.
I’m sharing my complete, real-life journey of how to install UV light air purifier in my HVAC system—not just the technical side, but also the small lessons, challenges, and pleasant surprises that came along. Whether you’re looking for an HVAC UV light installation guide or just curious about what it’s like to set one up yourself, this step-by-step breakdown should help you feel confident in doing it right.
Why I Chose a UV Light Air Purifier
Before I dive into the installation process, I want to explain why I even considered installing UV light for HVAC in the first place. My family and I live in a region with high humidity for most of the year, which means our air ducts were prime real estate for mold spores. Even with regular filter changes, I’d still notice a faint odor when the AC kicked in.
I tried standard HEPA filters, and while they trapped dust and pollen effectively, they didn’t address the biological contaminants floating in the air. A friend recommended a UV-C light air purifier setup, explaining that it targets bacteria, viruses, and mold at a microscopic level—things that filters alone can’t always catch. That was enough to convince me to start researching DIY UV light air purifier installation options.
How to Install UV Light Air Purifier
Step 1: Choosing the Right UV Light for My HVAC
The first thing I learned: not all UV air purifiers are created equal. Some are standalone units for single rooms, while others are designed to be mounted directly in your HVAC system’s air ducts. Since my goal was whole-home air purification, I went with a duct-mounted model.
When comparing brands, I paid attention to these key features:
- Type of UV light – UV-C wavelength (254 nm) is what you want for germicidal efficiency.
- Size and coverage area – I made sure the bulb length matched the width of my air duct for maximum exposure.
- Ease of installation – Some units come with a magnetic mount or pre-drilled bracket, which is a time saver.
I also checked reviews from other homeowners who had done a similar UV germicidal light setup to ensure I wasn’t buying something overly complicated or fragile.
Step 2: Finding the Best Location for Installation
Finding the right spot for your UV air purifier installation matters more than I initially thought. The effectiveness of the system depends heavily on the position of the UV light within the ductwork.
According to my research (later confirmed by the manufacturer’s guide), the optimal location is immediately after the air filter and before the cooling coil.
This ensures that air passing through has already been pre-filtered, so dust doesn’t accumulate on the bulb, and the UV light can hit the coil to prevent mold growth there.
Finding the right spot for your UV air purifier installation matters more than I initially thought. The effectiveness of the system depends heavily on where the UV light is positioned in the ductwork.
From my research (and later confirmed by the manufacturer’s guide), the best location is just after the air filter and before the cooling coil. This ensures that air passing through has already been pre-filtered, so dust doesn’t accumulate on the bulb, and the UV light can hit the coil to prevent mold growth there.
I turned off my HVAC system and used a flashlight to inspect the duct. Space was tight, but I found a flat section of sheet metal just above the evaporator coil—perfect for my how to fit UV light in air duct mission.
Step 3: Preparing the Tools and Safety Gear
Before starting, I gathered the tools I’d need:
- Cordless drill
- Hole saw attachment (sized for the UV lamp housing)
- Screwdriver
- Protective gloves and safety glasses
Safety tip from experience: UV-C light can be harmful to eyes and skin. Never look directly at the bulb when it’s on. I made sure the unit I bought had a built-in safety switch so the light turns off automatically if the housing is opened.
Step 4: Cutting the Opening in the Duct
This part was nerve-wracking for me because once you cut into your HVAC duct, there’s no going back. Following the template included in the kit, I marked the exact size and shape for the housing. Using my drill and hole saw attachment, I carefully cut through the sheet metal.
A word of advice: go slow and steady. Sheet metal edges can be sharp, so wear gloves. I took my time, and within a few minutes, I had a perfectly round opening for the UV lamp assembly.

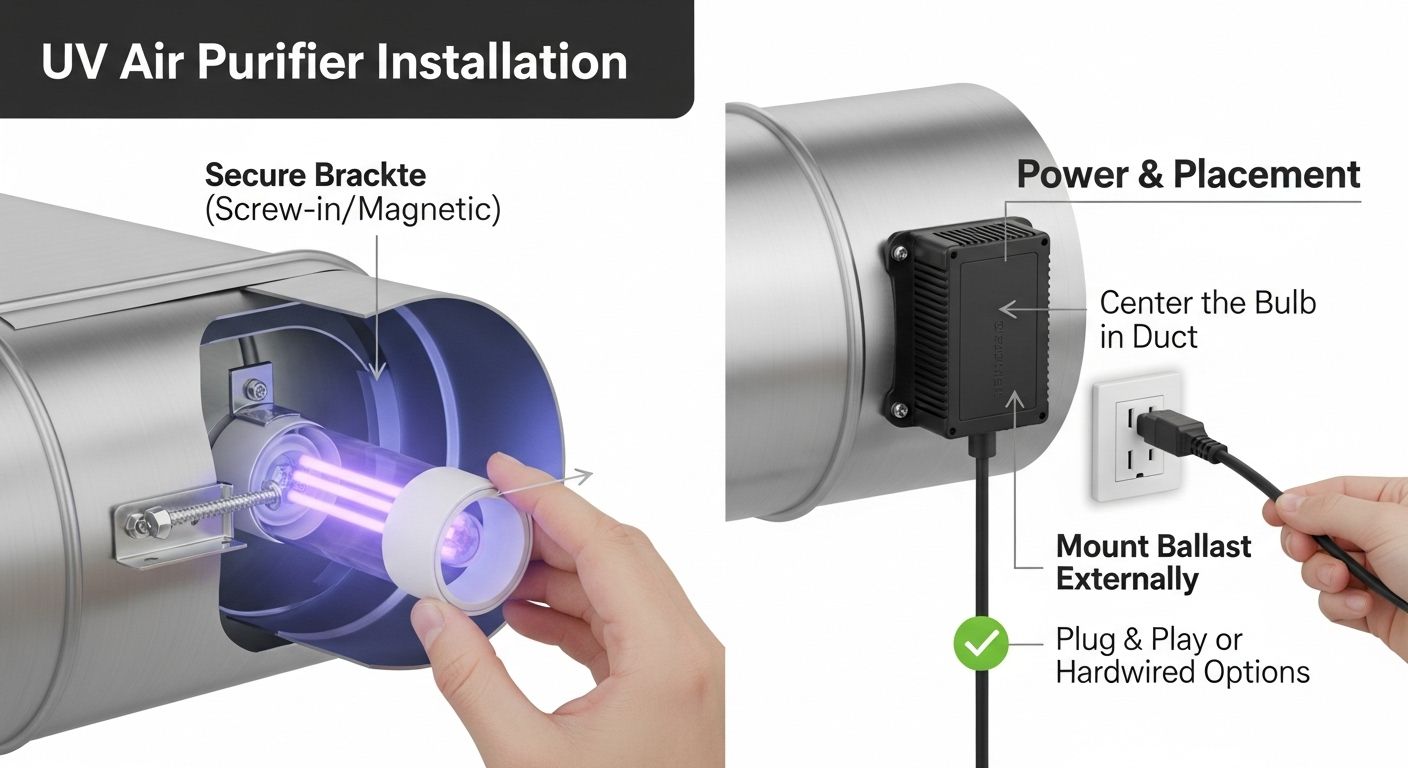

Step 5: Mounting the UV Light Assembly
With the hole ready, I slid the UV lamp housing into place.
My model used a simple screw-in bracket system, but I’ve seen others that rely on magnetic mounts for easier installation. I made sure the bulb extended into the center of the duct so the UV light would evenly cover the air passing through.
I then secured the power ballast on the outside of the duct using screws. Some units are plug-and-play, while others require direct wiring. Mine plugged into a nearby standard outlet, which made things simpler.
Step 6: Wiring and Power Connection
For my DIY UV light air purifier installation, wiring was minimal. I simply connected the unit to its power supply, double-checked that the grounding wire was secure, and routed the cable neatly to avoid tangling with other components.
If your system requires hardwiring, I strongly recommend hiring an electrician unless you’re very comfortable working with electrical systems. Safety is worth the extra cost.
Step 7: Testing the System
Moment of truth—time to see if all the work paid off. I turned the HVAC system back on and flipped the switch for the UV light. Most units have an indicator light on the housing that lets you know it’s working. Mine glowed a soft blue, which was oddly satisfying to see.
I didn’t notice any immediate change in the air quality (that takes time), but I did notice that the usual musty smell when the AC kicked in was gone within a few days.
Step 8: Maintenance and Long-Term Observations
Over the next few months, I kept an eye on the bulb’s performance. Most UV-C bulbs last around 9–12 months before losing effectiveness, even if they still light up. I set a reminder to replace mine annually to ensure the UV germicidal light setup stays effective.
Another thing I noticed was less visible dust accumulation on furniture compared to before. While I can’t say it eliminated all allergens (pollen still comes in through open windows), the difference in overall freshness and odor control was significant.
Pros and Cons from My Real Experience
After living with this UV air purifier installation for a while, here’s my honest takeaway:
Pros:
- Reduced musty odors from the HVAC system
- Noticeable decrease in allergy flare-ups during peak seasons
- Simple maintenance (just bulb replacement)
- Works silently in the background without affecting airflow
Cons:
- The initial cost can be higher than portable units
- Bulbs need regular replacement for optimal performance
- Installation requires some DIY skill or professional help if wiring is needed
Comparing to Other Air Purification Methods
I’ve tried portable HEPA units, carbon filters, and even ionizers in the past. They each have their strengths, but none offered the whole-home coverage of an HVAC UV light installation guide approach.

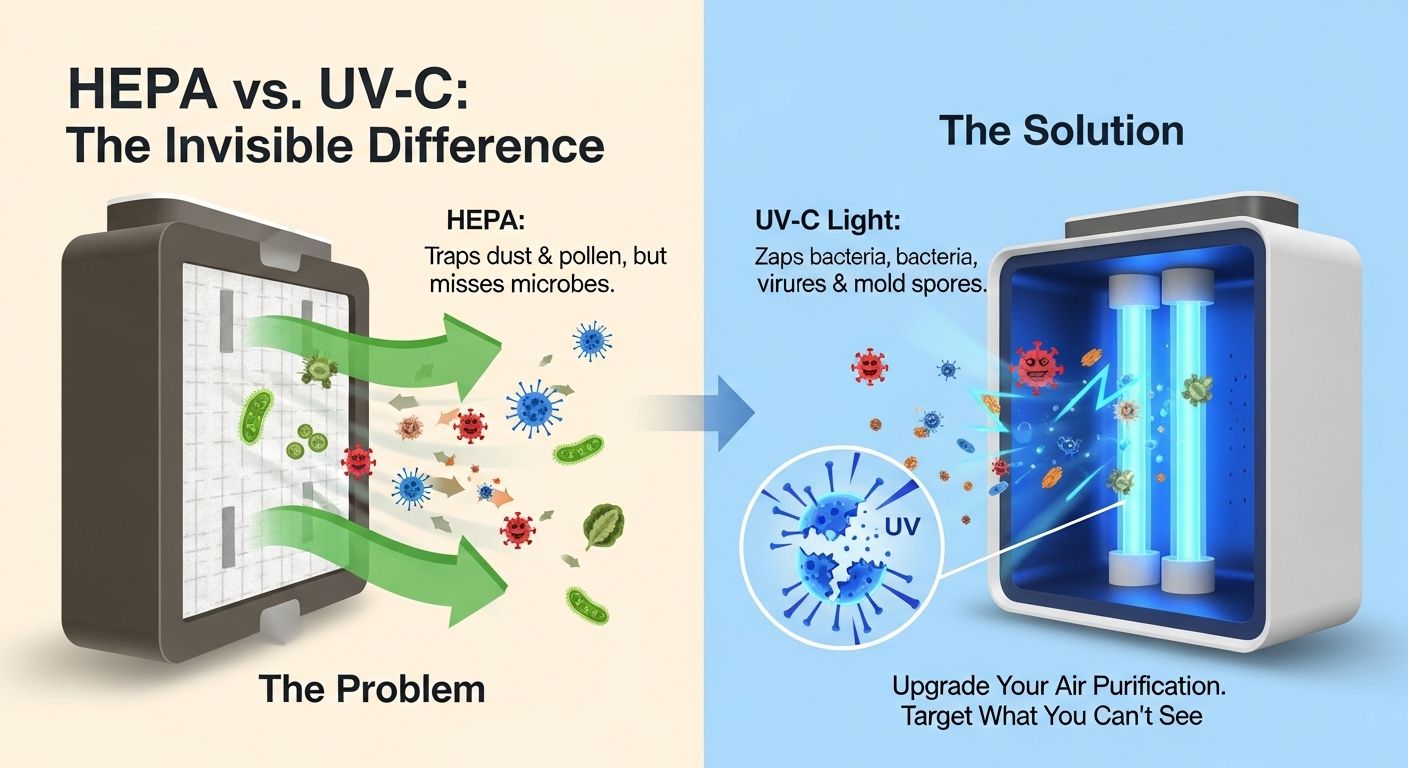

HEPA filters are excellent for trapping particulates but do little for bacteria or mold spores. Carbon filters are great for odors but not for germs. The UV-C light air purifier setup complements these systems by addressing what they can’t. For me, combining a good HEPA filter with the UV light in the HVAC has been the most effective combo.
Final Thoughts – Is DIY Worth It?
If you’re reasonably handy and comfortable working around your HVAC system, learning how to install UV light air purifier equipment yourself can save you a significant amount in labor costs. My installation took just over an hour, and the results have been well worth it.
However, if your setup requires complex wiring or you’re unsure about cutting into ductwork, hiring a professional might be the smarter move. Either way, the benefits of having a UV germicidal light setup in your HVAC system—especially for those sensitive to allergens or prone to respiratory issues—are hard to ignore.
Looking back, I wish I had done this years earlier. It’s one of those upgrades you don’t think about until you experience the difference it makes. Now, every time I take a deep breath in my home, I know that invisible layer of UV protection is working quietly behind the scenes.
